Short Range Ultrasonic Testing

SHORT RANGE ULTRASONIC services is provided by AYA ROBOTICS as a Complimentary Service to cover the ANNULAR RING PLATE for the TANKS.

Short Range Ultrasonic testing is one of the Ultrasonic test methods wherein the ultrasonic waves are transmitted in the form of pulsed guided laminar waves using special purpose ultrasonic probes. When laminar waves hit discontinuities they are mode converted and the reflection of the waves are detected by the transducer.

This ( SRUT ) method is

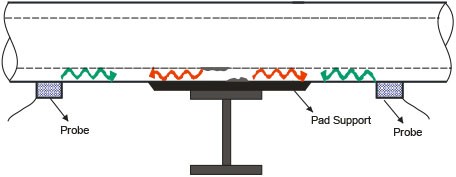

Short Range Ultrasonic testing – SRUT is a screening non-destructive test method to detect corrosion on the pipe wall or plates concealed under support structures or structural shell. The special SRUT probe is placed away from the area of interest (generally concealed surface) to scan up to 1m of material length without losing adequate sensitivity. Approximately 60mm equivalent diameter area (free from coating) is essential to contact the special probe on the material. Testing can be performed while the plant or assets are in-service. Annular rings under the Tanks shells are best inspected using Short Range Ultrasonic testing – SRUT.

We use our ISONIC Units with Certified UT LIII operators
